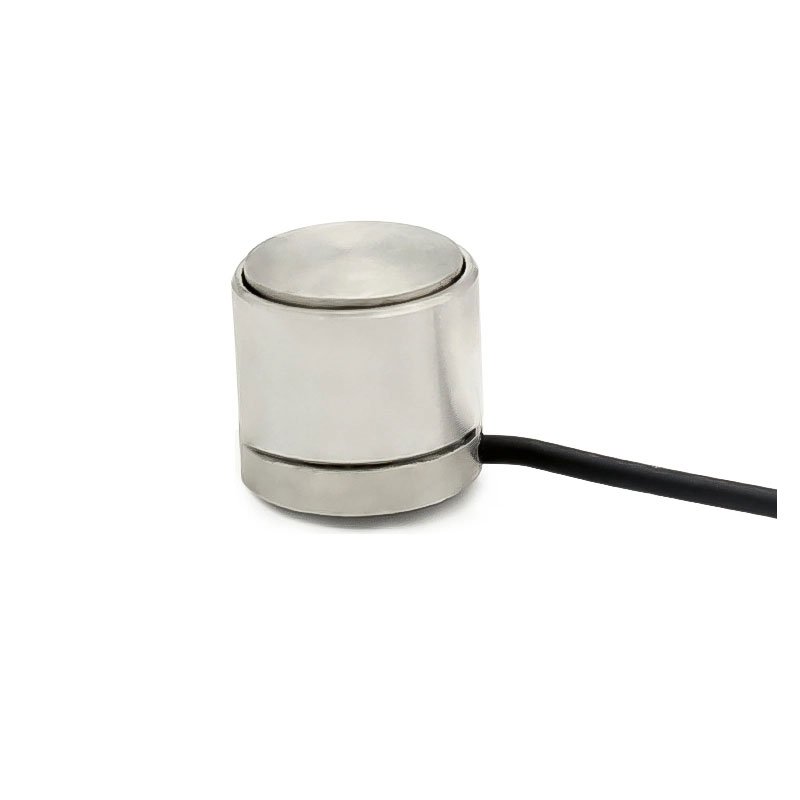

DYZ-103 Miniature Column Load Cell

DYZ-103 Miniature Column Load Cell - Image 3

DYZ-103 Miniature Column Load Cell - Image 4

DYZ-103 Miniature Column Load Cell - Image 5

DYZ-103 Miniature Column Load Cell - Image 6

DYZ-103 Miniature Column Load Cell - Image 7

DYZ-103 Miniature Column Load Cell

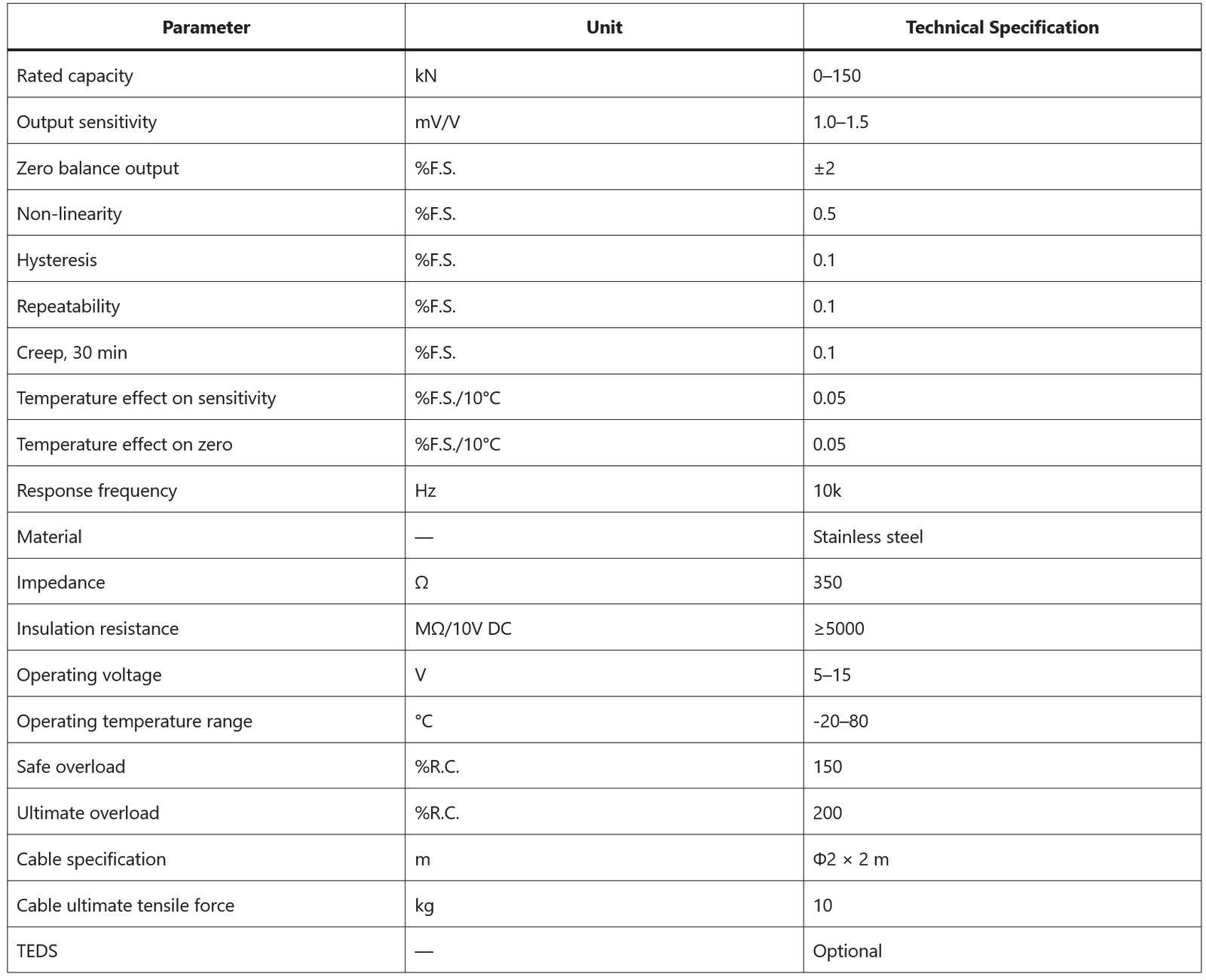

Technical Specifications

Model: DYZ-103
Rated Capacity: 10KN, 20KN, 50KN, 75KN, 100KN, 150KN
Force Type: Tension and pressure (push-pull)
Material: High-quality stainless steel
Structure: Miniature column type
Signal Performance: High stability, anti-interference
Customization: Available upon request

Category: Spare Parts

Description
Reviews (0)

DYZ-103 Miniature Column Load Cell for Tension and Compression Force Measurement

The DYZ-103 is a high-precision, miniature column-type load cell designed for measuring both tension and compression forces in compact applications. With a stainless steel build and excellent signal stability, it is ideal for precise industrial force monitoring ranging from 10KN to 150KN.
