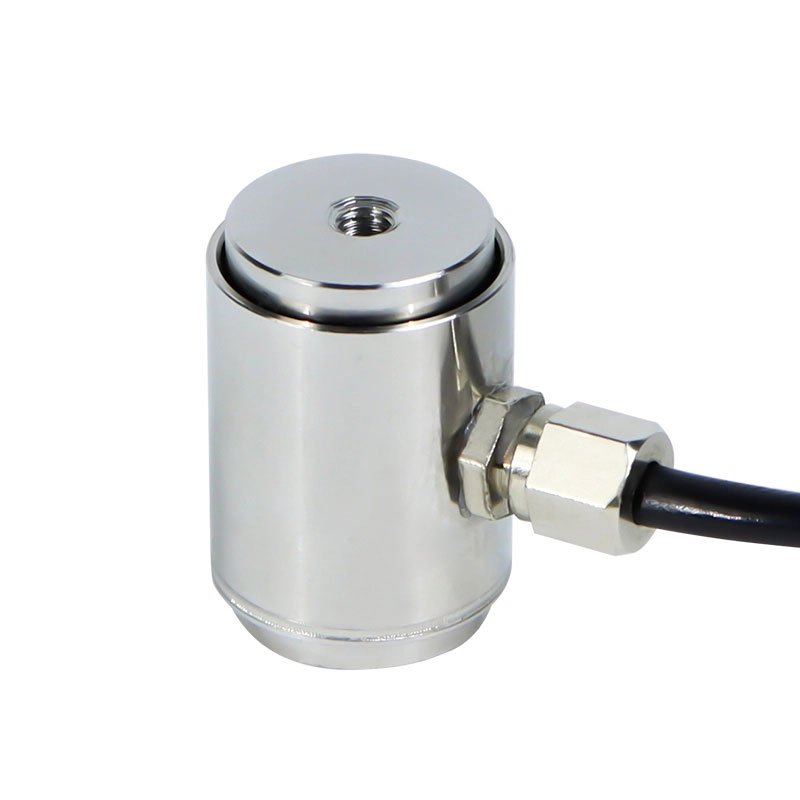

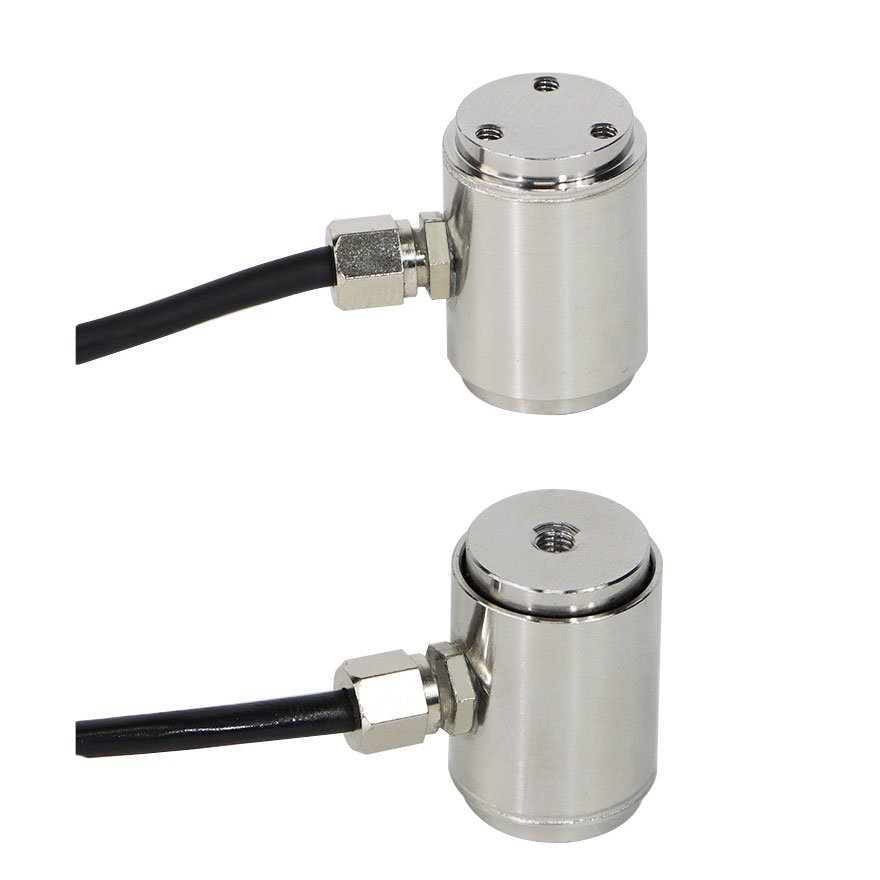

DYZ-102 Mini Button Load Cell

DYZ-102 Mini Button Load Cell

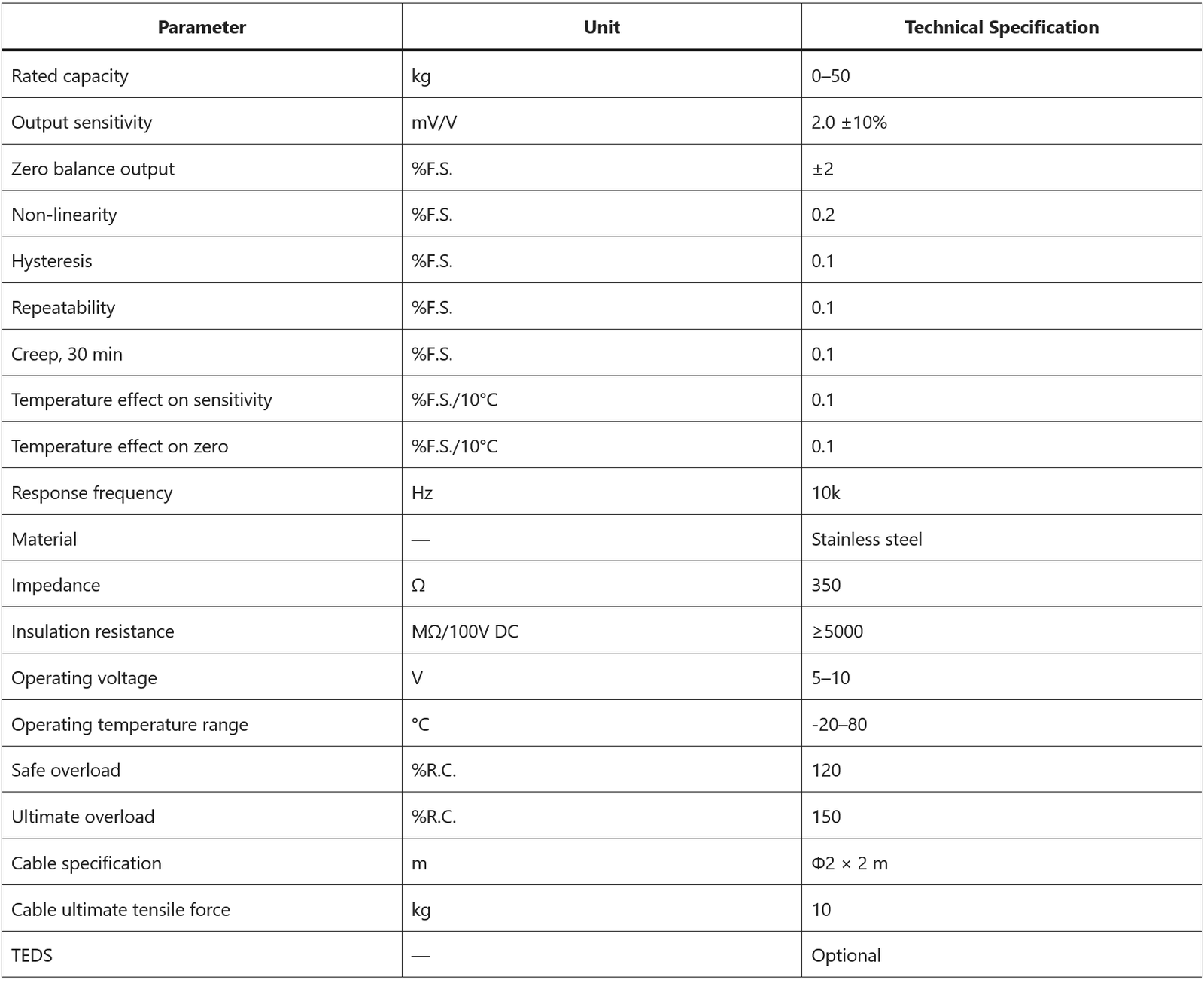

Technical Specifications

Model: DYZ-102
Rated Capacity: 2KG, 10KG, 15KG, 20KG, 30KG, 50KG
Force Type: Compression only
Material: High-quality stainless steel
Design: Miniature button load cell
Signal Performance: Stable, low-interference output
Customization: Non-standard and embedded options available

Category: Spare Parts

Description
Reviews (0)

DYZ-102 Mini Button Load Cell for Micro Compression Force Measurement

The DYZ-102 is a compact, stainless steel miniature load cell designed for accurate micro compression force measurement in constrained environments. With a load range from 2KG to 50KG, its button-type design is ideal for applications requiring small size, high stability, and excellent resistance to environmental interference.
